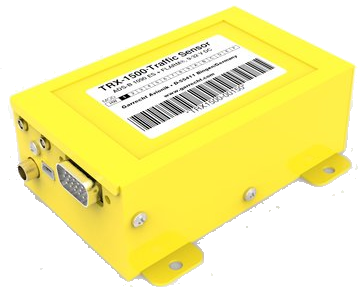

TRX 1500 Flarm and ADS-B receiver

TRX 1500 Flarm and ADS-B receiver
  Zoom


Our Price:  £1,160.00(Inc. 20% VAT)(£966.67 Exc. VAT)
+

Brand:  TRX

TRX-1500 is a collision avoidance system for remote installation. The system combines ADS-B and Transponder reception with a FLARM® transmitter and receiver. It features many interface options and is capable of sending traffic data to compatible traffic displays and portable moving-maps as well as professional avionics systems making integration into existing cockpits easy.


EASY INSTALLATION
TRX-1500 is compact, lightweight and only draws very little power. With its interfaces it can be effortlessly integrated into existing panels. At a weight of less than 180g it is even suitable for the 120kg class of microlight aircraft.

TRAFFIC DETECTION
TRX-1500 receives the exact 3D-position of FLARM® and ADS-B Traffic as well as distance and relative altitude of Mode-S transponders. Additionally the own position is sent out to all FLARM® compatible systems - over 20.000 in use worldwide.

INTERFACES
TRX-1500 features two independent traffic data channels for display systems or moving maps in NMEA or GARMIN® TIS® format and an audio output. In addition the TRX-1500A version has an ARINC429 interface integrated for connection to professional panel mount avionics like GARMIN® GNS® or GTN®.

TRAFFIC DETECTION
FLARM® Transceiver (3D) with RX/TX amplifier
ADS-B Receiver (3D)
Transponder receiver (Altitude, Distance)
DIMENSIONS
Dimensions: 63 x 38 x 108 mm (HxWxD)
Weight: 0,18kg
ENERGY
Input voltage 9V to 28V DC
Supply current typically ca. 0,13A at 12V
Supplies external display systems with 3.3V
INTERFACES
RS232 NMEA for FLARM® compatible Displays and Moving-Maps
RS232 GARMIN® TIS® for portable GARMIN Moving Maps
Audio output to Headsets/Intercoms
ARINC 429 for panel mount GPS like GARMIN® GNS/GTN/G1000 (TRX-1500A only)
WHAT’S IN THE BOX
TRX 1500 unit
ADS-B antenna
Dipole Flarm Antenna
Serial interface cable with power input kit
Instruction manual
