Trade in Old Flarm for LXNAV PowerMouse IGC
Trade in Old Flarm for LXNAV PowerMouse IGC
Trade in Old Flarm for LXNAV PowerMouse IGC
Trade in Old Flarm for LXNAV PowerMouse IGC

Trade in Old Flarm for LXNAV PowerMouse IGC

£832.00
(Inc. 20% VAT)
(£693.33 Exc. VAT)
(1 Review)
ENL - Activated
Second Antenna Option (with License)
Second Antenna Option (No License)
Integrated ADSB Module
Powermouse Mount
+

Upgrade any old Flarm to a new PowerMouse IGC and save £100.

Just place your order for a PowerMouse IGC and send us your old Flarm and power cable. You keep any displays you have and when we receive your old Flarm, we will send you a new PowerMouse Flarm. All you have to do is plug it in!

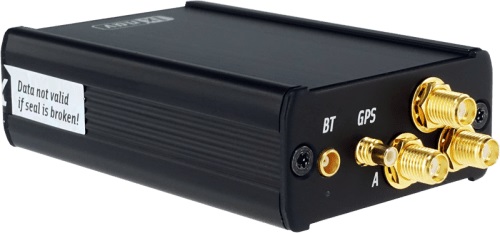

The PowerMouse IGC is not only a powerful Flarm, but also approved as an IGC logger all the way up to Diamond. Customisable with optional extras; smaller, lighter and more powerful than previous flarm units; the PowerMouse is a step into the future

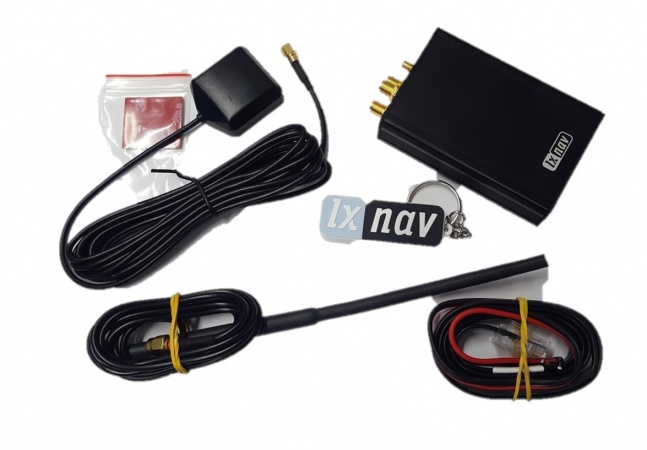

What's in the standard box:

  • PowerFlarm unit
  • LXNAV GPS antenna
  • Classic dipole antenna
  • Bluetooth antenna
  • Power cable (RJ45 to two loose ends)
  • USB stick with instructions and manual

* Units purchased with the 'second antenna option' will have two classic dipoles included in the box.

* Units purchased with the 'ADSB module' will also have an ADSB antenna in the box.

Read on below in MORE INFORMATION and SPECIFICATIONS for further details.

More Information

The PowerMouse is a more powerful standalone box hidden behind/below the cockpit dashboard.

It has an integrated USB port which is easier to use than the SD card slot. It has a built in Bluetooth module which works with Android and iOS, GPS module and the option of an IGC flight recorder with internal pressure sensor. The Power Mouse is based on a PowerFLARM technology. Second Flarm antenna and integrated ADSB option also available.

Integrated ADS-B adds to the functionality by adding a transponder and ADS-B receiver. In addition to Flarm equipped aircraft, the unit will also provide proximity warnings for transponder equipped aircraft. Aircraft without ADS-B out capability will be shown with approximate range and altitude difference (Mode-C). Aircraft with ADS-B out will lead to the same warnings as for Flarm equipped aircraft.

Main features

Bluetooth module BT3.0 an BT4.0LE (for Android and iOS)

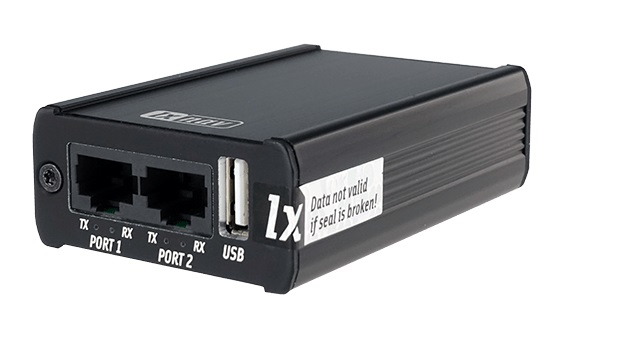

External USB connector for an easy data exchange behind the cockpit panel

Built in flarm splitter – easy to connect to second display or nav device

Expandable to all standard Flarm displays (3V and 12V)

PowerFlarm platform

Specifications

Dimensions: 55mm x 90mm x 25mm

Weight: 160g

Power Supply: Input 8-36V DC

Consumption: 1.02W (85mA @12V) excl. power for USB stick

Optional extras:

  • ENL – engine noise level sensor
  • RFB – second flarm receiver (dual antenna diversity)
  • ADSB functionality
