TQ KRT-2S Mini Portrait VHF 8.33kHz Radio

£1,140.00
(Inc. 20% VAT)
(£950.00 Exc. VAT)
Earn 1,140 Loyalty Points
+
More Information

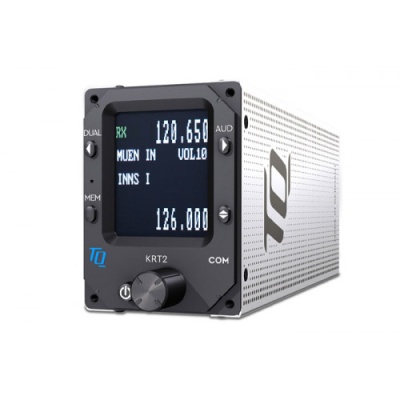

TQ KRT2 Mini Portrait VHF-AM Transceiver – Compact Power and Flexibility

The TQ KRT2 Mini Portrait VHF-AM transceiver brings the power and reliability of the KRT2 series into a uniquely compact portrait design. Ideal for tight panel spaces, this model offers advanced 8.33 kHz and 25 kHz channel spacing, crystal-clear audio, and a high-contrast TFT color display. Certified for aviation use, the KRT2 Mini Portrait is the perfect solution for pilots who need high performance in a space-saving format.

Main Features

  • Frequency Range: 118.000 MHz to 136.990 MHz
  • Channel Selection: 8.33 or 25 kHz spacing with automatic switching
  • RF Output Power: > 5 W (carrier power)
  • Receiver Sensitivity: > 12 dB SINAD @ 2 uV
  • Input Voltage Range: 9 V DC to 36 V DC
  • Operating Temperature: -20°C to +55°C (short-term up to +70°C)
  • Dual-Watch Mode: Monitor two channels simultaneously
  • Integrated VOX / Intercom: Supports two headsets or speakers

Compact Design with Maximum Visibility

The portrait orientation of the KRT2 Mini allows for installation in narrow panel spaces while still offering the same powerful features as other KRT2 models. The bright, high-contrast TFT color display ensures excellent readability in any lighting, and can be dimmed or turned off as needed for night operations. This model also features automatic squelch control with manual override, providing clarity and control over audio levels.

Easy Installation and Compatibility

Designed to simplify upgrades, the KRT2 Mini Portrait can connect directly to standard and dynamic microphones and offers a range of adapters for easy integration into existing setups. A built-in test function increases safety, making pre-flight checks simple. Additionally, Navboys offers support with fitting, logbook updates, and regulatory paperwork, ensuring compliance and hassle-free installation.

Why Choose the KRT2 Mini Portrait?

  • Lightweight, space-saving portrait design – ideal for compact cockpits
  • High-quality audio with minimal power consumption
  • Durable build and certified for reliable aviation use
  • Future-ready with firmware upgrade capability
  • Integrated features like dual-watch and intercom for optimal cockpit communication
Specifications

TQ KRT2 VHF Radio Specifications

SpecificationDetails
Type8.33 / 25 kHz VHF radio transceiver, 118.000 - 136.975 MHz, 2278 channels
Frequency Precision±5 ppm
ApprovalsETSO-2C169a / TSO-C169a
TransmitterEUROCAE ED-23C Class 4, 6, RTCA DO-186B Class 4, 6
ReceiverEUROCAE ED-23C Class C-D-E-H1/2, RTCA DO-186B Class C-D-E
CompatibilityEUROCAE ED-23C, RTCA DO-186B, RTCA DO-160F, RTCA DO-178B Software Level D
Operating Voltage9 - 33 V DC
Power Consumption (@12 V)Standby: 1 - 1.4 W (depending on display brightness)
Transmit: 17 - 30 W (depending on modulation level)
Transmitted Power6 W @ ≥ 13.5 V
Loudspeaker Output≥10 W in 4 Ω
Operating Temperature-15°C to +55°C
Weight360 g
Max. Operating Altitude35,000 ft
Customer Reviews

Be the first to Write a Review for this item!

Brand
TQ
