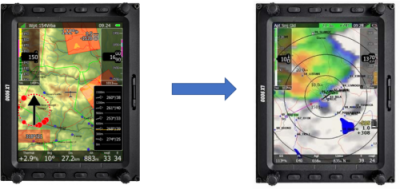

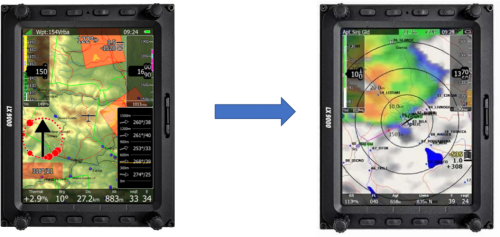

Trade up Old LX9000 to Latest Generation LX9000

Our Price: £3,982.00(Inc. 20% VAT)(£3,318.33 Exc. VAT)

–+

Built In FLARM:
AHRS option:	+ £739.00
Touchscreen enabled display:	+ £418.00
WiFi:	+ £322.00

Brand: LXNAV

More Information
Specifications
Customer Reviews

Main features

The latest generation of the LX9000 supports the latest firmware enabling features such as Radio Bridge, Wifi capabilities for weather, task and flight upload and download along with touch screen option.

By completing this upgrade you also get 2 more years warranty for your map display unit.

Notes.

The upgrade requires you to send back your old LX9000 and harness, a new harness will be supplied with the new unit

If you add AHRS you will need to have a V9 or V8 vario

If you would like to upgrade your Vario at the same time, please check out the vario upgrade options here

Hardware

ARM processor with 800 MHz clock
16 Gb storage memory
6 push buttons and 4 rotary switches
56-channel uBlox GPS receiver, supports GALILEO and GLONASS
integrated FLARM transmitter and receiver (optional)
Engine noise level sensor
Pressure altitude sensor

Input and output

Integrated SD card reader
Two serial RS232 interfaces
RS485 bus interface
FLARM interface
USB interface

Optional Accessories

Second Seat Device (LX90xxD or LX80xxD)
Remote Control for first and second seat
High precision compass module
MOP sensor
Flap position sensor
Additional Vario Indicators (I9 or I8/I80)
Flarm ACL
External Flarm display
AHRS option
ADSB receiver (see other aircrafts as flarm objects on map)
Radio and transponder bridge
Wi-fi module

V8 Vario

Dual ARM Cortex-M4 processor on 160MHz
Extremely bright 2.5” color display with 320x240 pixels
Digital temperature compensated pressure sensors for altitude and airspeed
Inertial platform 3 axis digital +-6g accelerometer, 4 gyroscopes (for inertial vario, AHRS and wind calculation)
No mechanical parts allow extremely fast response time of needle
Additional Flarm radar screen and artificial horizon
3 push buttons for setting adjustments
ALS (ambient light sensor)
External SD card for configuration, flarmnet and FW update

V9 Vario

ARM Cortex-M4 processor running on 160MHz
Mechanical needle driven by stepper motor
QVGA (320*240pixels) sunlight readable display
Digital temperature compensated pressure sensors for altitude and airspeed
inertial platform
3 axis accelerometer
3 axis gyros
AHRS (optional with activation code)
Smooth 16bit audio output
Audio Equalizer
integrated synthesized speech output
Audible thermal assistant

V80 Vario

Dual ARM Cortex-M4 processor on 160MHz
Extremely bright 3.5” (9 cm) color display with 320x240 pixels
Digital temperature compensated pressure sensors for altitude and airspeed
Inertial platform 3 axis digital +-6g accelerometer, 4 gyroscopes (for inertial vario, AHRS and wind calculation)
No mechanical parts allow extremely fast response time of needle
Additional Flarm radar screen and artificial horizon
3 push buttons for setting adjustments
ALS (ambient light sensor)
External SD card for configuration, flarmnet and FW update

V9/V8/V80 Input and output

RS485 bus
Speed command and Vario priority input
additional 4 digital inputs
Smooth audio output
Speech output (voice module)
Flarm warning indication
Optional AHRS (V8 and V80)

Power and battery

Current drain display unit 230mA at 12V without integrated Flarm at 50% LCD brightness (600nits - still readable under sunlight)
Current drain display unit 290mA at 12V without integrated Flarm at 100% LCD brightness (1200nits
Without Flarm option is additional 20mA
Current drain vario unit 120mA at 12V
Smart power management
Automatic backlight regulation

Size and weight

Display unit 98mm x 88mm x 65mm depth
Vario unit fi57mm x 92mm depth
Weight: ~500g (without vario unit)
