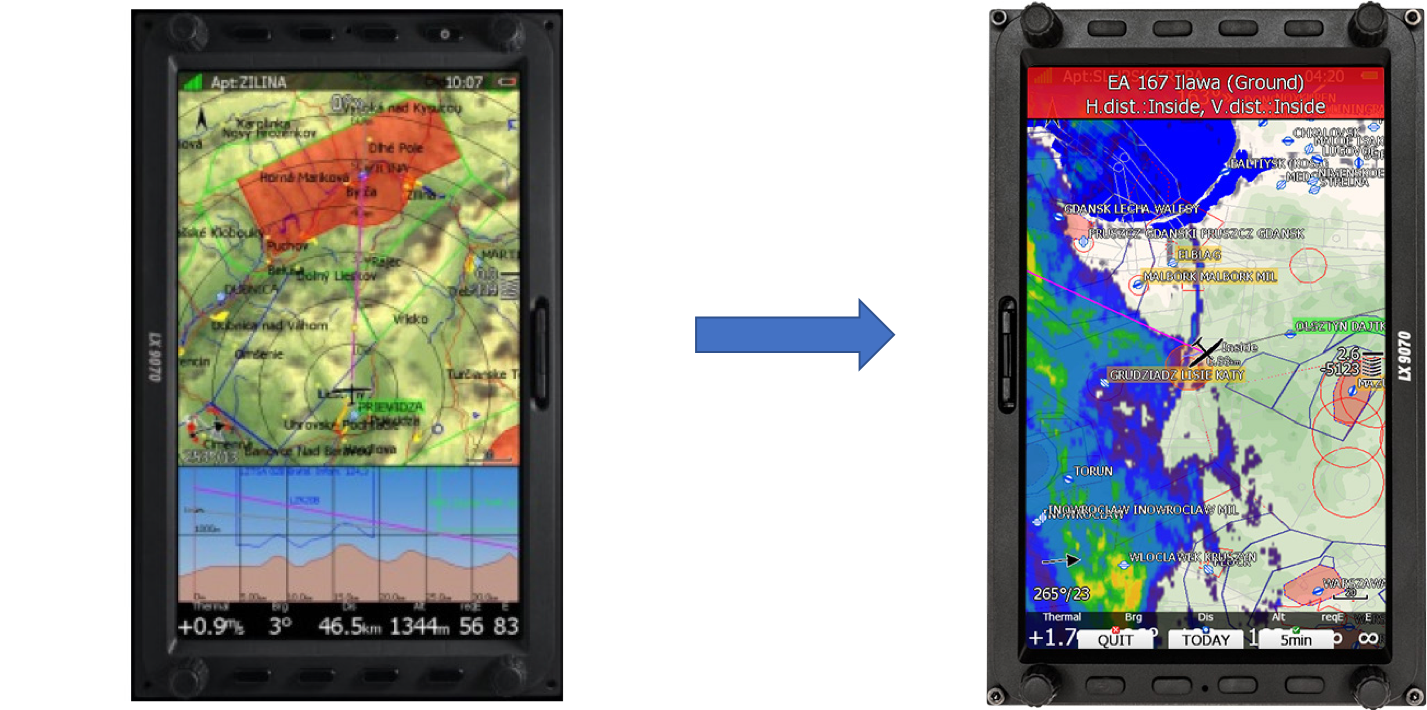

Trade up Old LX9070 to Latest Generation LX9070

Trade up Old LX9070 to Latest Generation LX9070

£4,005.00
(Inc. 20% VAT)
(£3,337.50 Exc. VAT)
Touchscreen enabled display
WiFi
–
+
More Information



The latest generation of the LX9070 supports the latest firmware enabling features such as Radio Bridge, Wifi capabilities for weather, task and flight upload and download along with touch screen option.

By completing this upgrade you also get 2 more years warranty for your map display unit.

Notes.

The upgrade requires you to send back your old LX9070 and harness, a new harness will be supplied with the new unit

If you add AHRS you will need to have a V9 or V8 vario

If you would like to upgrade your Vario at the same time, please check out the vario upgrade options here

Specifications
  • ARM processor with 800 MHz clock
  • 16 Gb storage memory
  • 6 push buttons and 4 rotary switches
  • 56-channel uBlox GPS receiver, supports GALILEO and GLONASS
  • integrated FLARM transmitter and receiver (optional)
  • Engine noise level sensor
  • Pressure altitude sensor



  • Integrated SD card reader
  • Two serial RS232 interfaces
  • RS485 bus interface
  • FLARM interface
  • USB interface



  • Second Seat Device (LX90xxD or LX80xxD)
  • Remote Control for first and second seat
  • High precision compass module
  • MOP sensor
  • Flap position sensor
  • Additional Vario Indicators (I9 or I8/I80)
  • Flarm ACL
  • External Flarm display
  • AHRS option
  • ADSB receiver (see other aircrafts as flarm objects on map)
  • Radio and transponder bridge
  • Wi-fi module



  • Dual ARM Cortex-M4 processor on 160MHz
  • Extremely bright 2.5” color display with 320x240 pixels
  • Digital temperature compensated pressure sensors for altitude and airspeed
  • Inertial platform 3 axis digital +-6g accelerometer, 4 gyroscopes (for inertial vario, AHRS and wind calculation)
  • No mechanical parts allow extremely fast response time of needle
  • Additional Flarm radar screen and artificial horizon
  • 3 push buttons for setting adjustments
  • ALS (ambient light sensor)
  • External SD card for configuration, flarmnet and FW update



  • ARM  Cortex-M4 processor running on 160MHz
  • Mechanical needle driven by stepper motor
  • QVGA (320*240pixels) sunlight readable display
  • Digital temperature compensated pressure sensors for altitude and airspeed
  • inertial platform
  • 3 axis accelerometer
  • 3 axis gyros
  • AHRS (optional with activation code)
  • Smooth 16bit audio output
  • Audio Equalizer
  • integrated synthesized speech output
  • Audible thermal assistant



  • Dual ARM Cortex-M4 processor on 160MHz
  • Extremely bright 3.5” (9 cm) color display with 320x240 pixels
  • Digital temperature compensated pressure sensors for altitude and airspeed
  • Inertial platform 3 axis digital +-6g accelerometer, 4 gyroscopes (for inertial vario, AHRS and wind calculation)
  • No mechanical parts allow extremely fast response time of needle
  • Additional Flarm radar screen and artificial horizon
  • 3 push buttons for setting adjustments
  • ALS (ambient light sensor)
  • External SD card for configuration, flarmnet and FW update



  • RS485 bus
  • Speed command and Vario priority input
  • additional 4 digital inputs
  • Smooth audio output
  • Speech output (voice module)
  • Flarm warning indication
  • Optional AHRS (V8 and V80)



  • Current drain display unit 230mA at 12V without integrated Flarm at 50% LCD brightness (600nits - still readable under sunlight)
  • Current drain display unit 290mA at 12V without integrated Flarm at 100% LCD brightness (1200nits
  • Without Flarm option is additional 20mA
  • Current drain vario unit 120mA at 12V
  • Smart power management
  • Automatic backlight regulation
