TA17 VHF Com Antenna Article

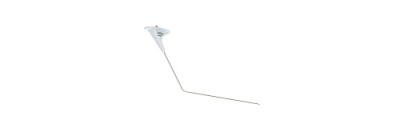

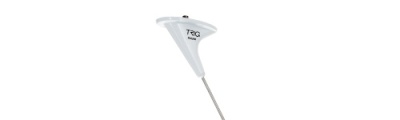

TA17 VHF Com Antenna

The Trig TA17 is a certified VHF Com antenna, optimized for seamless integration with Trig VHF radios. Featuring an angled design, the TA17 is typically installed on the lower fuselage, offering high performance and excellent electrical characteristics. With certification for high-performance applications, this antenna is suitable for a wide range of general aviation aircraft, supporting speeds up to 350 mph and altitudes up to 50,000 feet. Its low-profile, four-hole mounting base provides a solid foundation for aerodynamic efficiency and stability.

Key Features

  • Angled design, ideal for lower fuselage mounting
  • Lightweight, aerodynamic structure – optimized for Trig VHF radios
  • Compatible with most GA types, including high-performance aircraft (up to 350 mph / 50,000 feet)
  • FAA TSO C37d and C38d certified
  • Durable four-bolt mounting base for secure attachment
  • Comes with an installation kit for ease of setup

Reliable and Aerodynamic Design

The TA17’s angled profile is crafted for optimal performance when installed on the aircraft’s lower fuselage. The antenna’s low-profile, aerodynamic structure minimizes drag while maintaining strong signal transmission. With Trig’s design expertise, the TA17 pairs seamlessly with Trig VHF radios, delivering reliable communication at a high standard of performance.

Certified for High-Performance Applications

Certified to FAA TSO standards C37d and C38d, the TA17 meets stringent quality requirements, ensuring robust performance in various flight conditions. Designed for high-speed and high-altitude applications, the TA17 supports aircraft speeds up to 350 mph and altitudes of up to 50,000 feet. Its solid four-bolt mounting base provides stability, making it an excellent choice for a broad range of general aviation types.

Installation and Compatibility

With a straightforward mounting system, the TA17 comes complete with an installation kit, allowing for quick and secure setup. Its lightweight and aerodynamic design integrate easily with Trig radios, adding minimal drag and supporting optimal communication performance. By installing a TA17, pilots can ensure their Trig VHF radio installation is equipped for reliable communication in any environment.

Specifications

Specification TA17 VHF Com Antenna
Type Certified VHF Communication Antenna
Certification FAA TSO C37d, C38d
Installation Location Lower fuselage
Maximum Speed 350 mph
Maximum Altitude 50,000 feet
Mounting Solid four-bolt base
Installation Kit Included
Specifications
TA17 VHF Com Antenna Specifications

TA17 VHF Com Antenna Specifications

Product Model Type Frequency Impedance VSWR Polarization Pattern Connector RF Power Height Weight
TA17 VHF Com Antenna – ‘angled’ type 118 – 137 MHz 50 Ohms nominal 3.0:1 maximum Vertical Omni-Directional BNC female 30 Watts 228mm / 9.0″ 226g / 8oz
