Trig TT21 - Class 2 Mode S Transponder
Trig TT21 - Class 2 Mode S Transponder

Trig TT21 - Class 2 Mode S Transponder

£2,365.00
(Inc. 20% VAT)
£2,590.80
Saving Of
£225.80 (9%)
(£1,970.83 Exc. VAT)
Earn 2,365 Loyalty Points
+

The TT21 is the world’s smallest general aviation Mode S transponders, ideally suited for use in Gliders, light sport, and GA aircraft where panel space is at a premium. The TT21 is fully approved by EASA and the FAA, for both IFR and VFR use. You can also connect your Trig Transponder to an ADSB receiver.

More Information
TT21 Transponder Article

TT21 Transponder – Smart, Small, and Efficient

The TT21 transponder by Trig is a compact and lightweight solution designed for light aircraft, gliders, and ultra-light aviation. With a smart two-part design, the TT21 offers a reliable Mode S transponder system that’s simple to install and easy to operate, while keeping weight and space requirements to a minimum.

Compact Two-Part Solution

The TT21 transponder system consists of a separate control head and transponder box, allowing flexibility in mounting. The control head fits neatly into a standard 57mm round hole, or a smaller compact mount hole if required. Even with its wiring harness, the controller is only 85mm deep, while the transponder box can be installed anywhere in the airframe, providing an adaptable fit for different aircraft configurations.

Lightweight and Efficient Design

Weighing in at under 450 grams, the TT21 is an exceptionally light transponder solution that can be powered by an aircraft battery, making it ideal for sport aviation. An in-built altitude encoder further simplifies installation by eliminating the need for additional equipment. With a nominal power output of 130 watts, the TT21 is well-suited for lower altitude and slower speed applications, while its sister model, the TT22, supports higher altitudes and speeds with a 250-watt output.

Easy to Operate

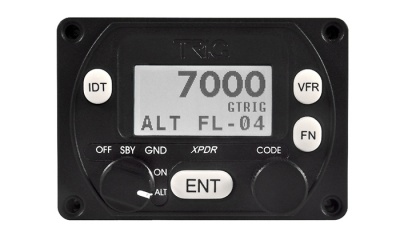

Designed for ease of use, the TT21 features a bright, backlit LCD display, a positive control knob, and intuitive push buttons for easy input of Squawk codes and Flight ID. Its splash-proof controller makes it suitable for open cockpit flying, ensuring reliability across diverse flying environments. The quick-release latch on the mounting tray secures the transponder, allowing for easy removal if necessary.

Key Features

  • Compact, two-part system with flexible installation
  • 57mm round or compact mount control head
  • Lightweight – under 450 grams
  • In-built altitude encoder for streamlined installation
  • 130-watt nominal power output (TT21 model)
  • Bright, backlit LCD display for easy in-flight reading
  • Splash-proof controller for open cockpit use
  • Quick-release mounting for easy access and removal

The TT21 transponder offers an affordable, high-quality Mode S solution for light and sport aviation. Its compact design, reliability, and ease of use make it a top choice for pilots looking to stay compliant with minimal fuss. Discover the efficiency of the TT21 and take your flying experience to new heights!

Specifications
TT21 Transponder Specifications

TT21 Transponder Specifications

Specification TT21 Transponder
Type Transponder Class 2 Mode S level 2els, ADS-B Class B0
Certification ETSO C88A, C112C, C166A; TSO C88b, C112c, C166b; approved for IFR and VFR flight
Compliance ED-73C, DO-160F, DO-178B Level B, DO-254 Level C, DO-260B, DO-181D
Supply Voltage (DC) 9-33 V
Typical Consumption (at 14V) Idle: 0.15 A, Active: 0.28 A
Nominal Transmitter Power 130 W at connector
Operating Temperature For the transponder: -40°C to +70°C
For the controller: -25°C to +70°C
Cooling Requirement No fan required
Weight (Hardware Back Box) 440g / 0.8 lbs
Weight (TC20 Control Head) 90g / 0.11 lbs
Dimensions (mm) Controller: H 44 x W 63 x L 54 mm
Transponder in tray: H 48 x W 68 x L 160 mm
Dimensions (inches) Controller: H 1.8 x W 2.4 x L 2.1 inches
Transponder in tray: H 1.8 x W 2.6 x L 6.2 inches
