Trig TX56A 25kHz Nav/Com Stack - 01955-00-01

£4,795.00
(Inc. 20% VAT)
(£3,995.83 Exc. VAT)
Earn 4,795 Loyalty Points
+
More Information
TX56A Nav/Com

TX56A Nav/Com

The TX56A Nav/Com by Trig is a modern solution to upgrade legacy avionics or equip new aircraft with efficient and slimline technology. At only 33mm high, the TX56A is engineered to save valuable space while offering an array of essential features for any pilot.

Trig’s commitment to a “better by design” philosophy has resulted in a Nav/Com that is suitable for a variety of needs. Whether you're a VFR pilot seeking VOR navigational backup, a flight school needing a user-friendly training system, or a serious VFR/IFR operator looking for dependable digital capabilities, the TX56A meets these requirements, enhancing your flight experience in all stages.

Key Features

  • Available with 760-channel spacing for use outside Europe
  • 10-Watt transmission power
  • Slimline at 33mm high, saving space
  • Bright, easy-to-read display with simple user interface
  • Dual Watch feature – monitor two com or nav frequencies simultaneously
  • ‘Say Again’ feature – playback of last received transmission
  • Built-in USB port on the front for quick frequency database uploads (up to 200 com and nav frequencies)
  • VOR/ILS receiver for monitoring additional VOR stations
  • Built-in VOR/LOC converter and digital CDI
  • 40-channel glide slope receiver
  • Highly efficient with no cooling fan required
  • Direct retro-fit compatibility with legacy radios, such as the SL30

Push Step

The TX56A display is both clear and bright, showcasing primary and secondary frequencies alongside identifiers for airfields and VORs. The ‘Push Step’ knob allows for quick frequency changes, moving from 25 kHz to 50 kHz without distracting from the outside view. Dual Watch functionality lets you monitor two frequencies at once, essentially serving as a secondary radio.

Say Again

Equipped with a ‘Say Again’ feature, a single button press replays the last received transmission. This feature is perfect for students and seasoned pilots alike, eliminating the need to ask air traffic for repeated instructions.

VOR

The TX56A Nav receiver is optimized for simplicity. It decodes Morse code for VOR and ILS, and it can monitor a secondary VOR, enhancing route navigation with an additional standby VOR radial. This feature allows quick and accurate position fixes by displaying both the primary and secondary VOR radials.

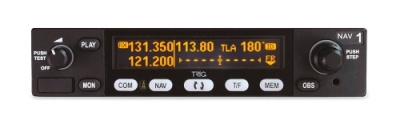

Built-in CDI

The integrated graphical CDI allows pilots to navigate easily without an external CDI. The TX56A also supports various display options, compatible with numerous cockpit instruments. Once tuned, the Nav receiver identifies the station by decoding its Morse identifier, and the CDI needle automatically centers, showing a direct bearing to the VOR with easy switching between inbound and outbound radials.

Product Design

With a low-profile design, the TX56A does not require external cooling fans, making it a compact and efficient option for both new installations and retrofitting. Its compatibility with popular legacy radios, such as the SL30, and ease of integration with KX155 and KX165 models make it an ideal choice. For legacy replacements, the TX56A tray provides a seamless fit.

Specifications
TX56 Nav/Com

TX56 Nav/Com

The TX56 Nav/Com by Trig provides a modern, space-saving solution for enhancing navigation and communication. Compact at only 33mm in height, it integrates seamlessly into a wide range of aircraft panels, making it ideal for both new installations and retrofits.

Designed for VFR and IFR operations, the TX56 includes VOR navigational capabilities for precise routing. Its advanced features offer pilots reliable performance, whether they’re upgrading legacy equipment or configuring a new cockpit.

Key Features

  • 8.33 kHz and 25 kHz channel spacing
  • 10 Watt transmit power
  • Dual Watch – monitor two Com or Nav frequencies simultaneously
  • USB port for frequency database upload
  • ‘Say Again’ feature – replay last transmission
  • Built-in digital CDI and VOR/LOC converter
  • 40-channel glideslope receiver
  • No external cooling required

Specifications

Type Certified
Certification ETSO 2C128, 2C169a, 2C34f, ETSO 2C36f, 2C40c
Compliance ED-23C, ED-67, DO-186B, DO-178B Level B, DO-160G, DO-254 Level C
Supply Voltage 11 – 33 V DC
Typical Consumption Receive: 265 mA, Transmit: 2A (at 14V)
Transmitter Power 10 Watt
Operating Temperature -20°C to +55°C
Cooling Requirement No fan required
Weight 1.1 kg / 2.42 lbs
Dimensions H 1.3” x W 6.26” x L 10.63”
Installed Depth 9.05” in tray
