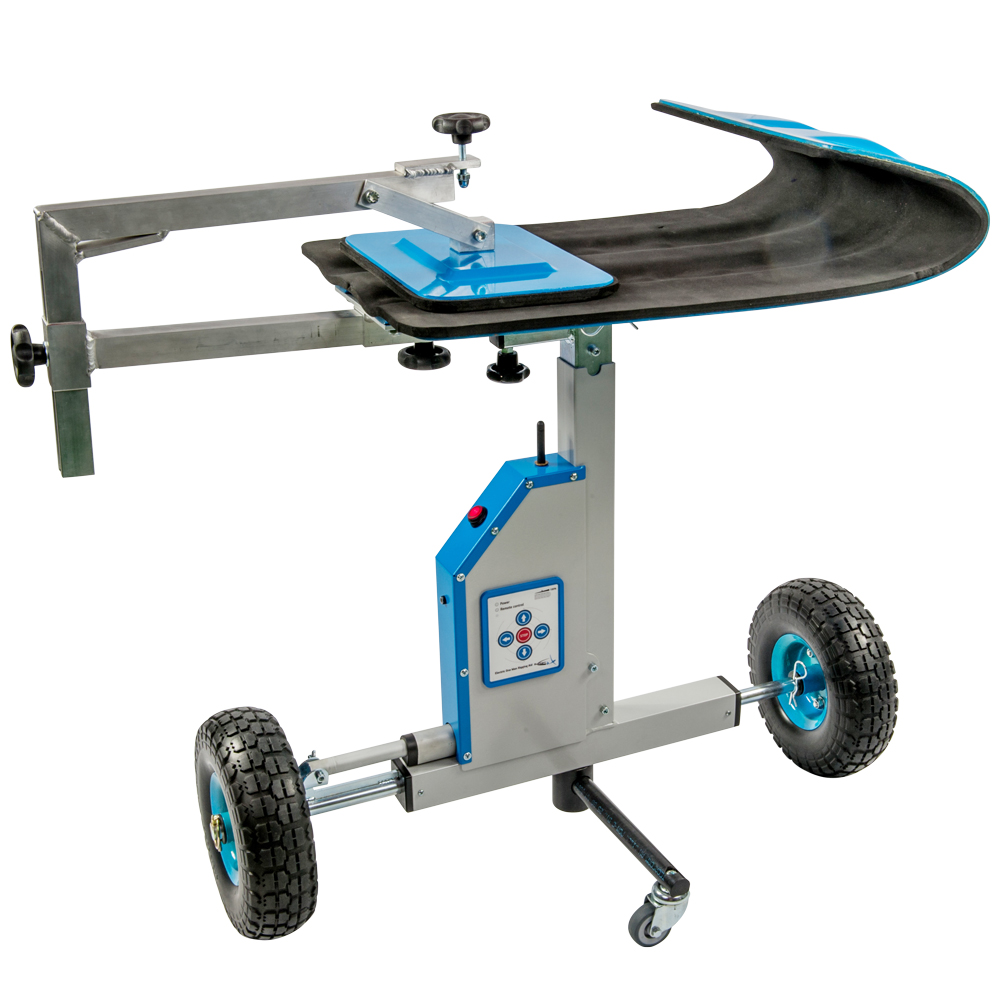

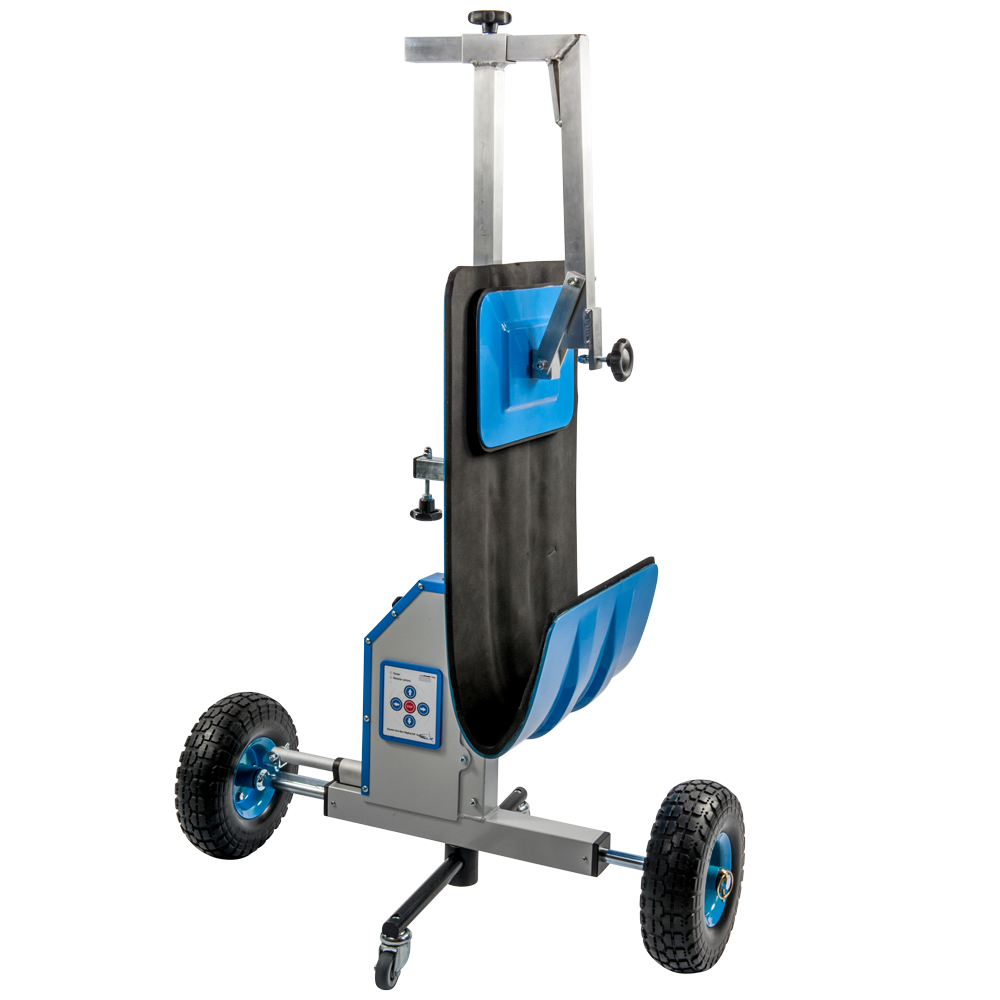

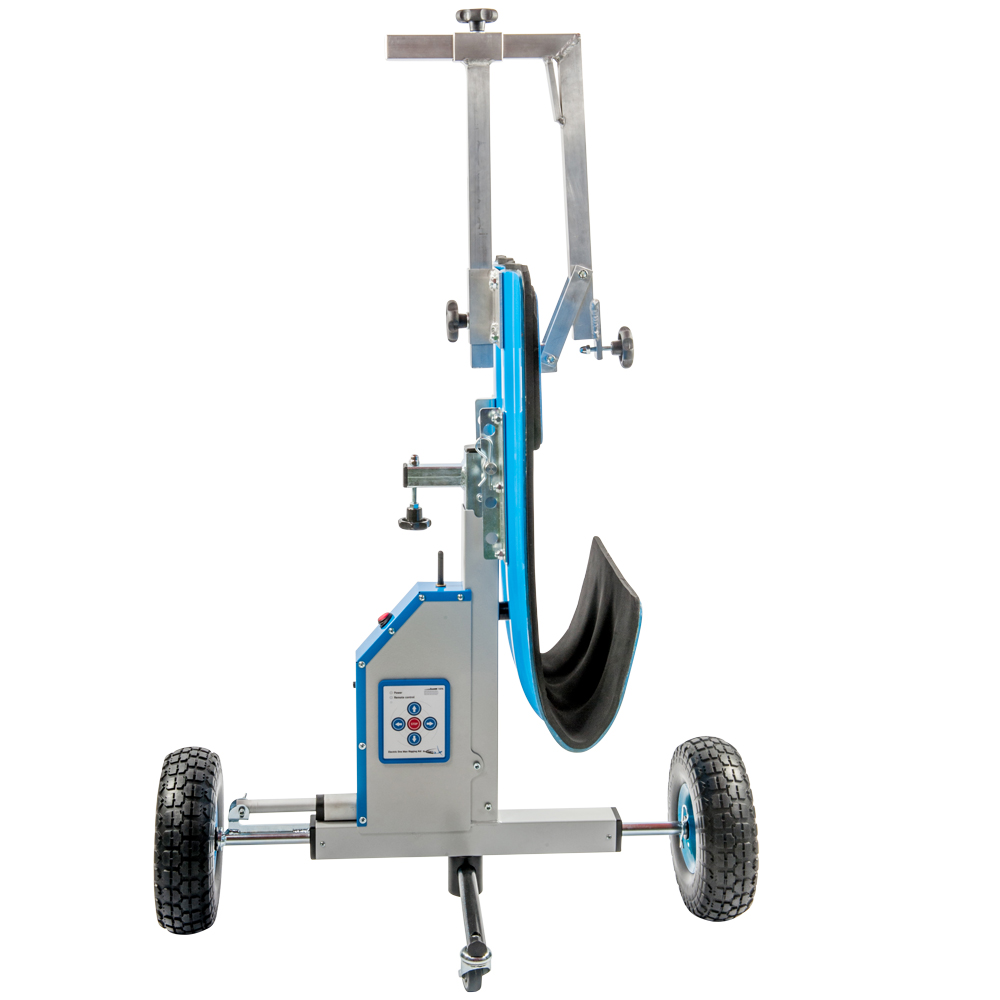

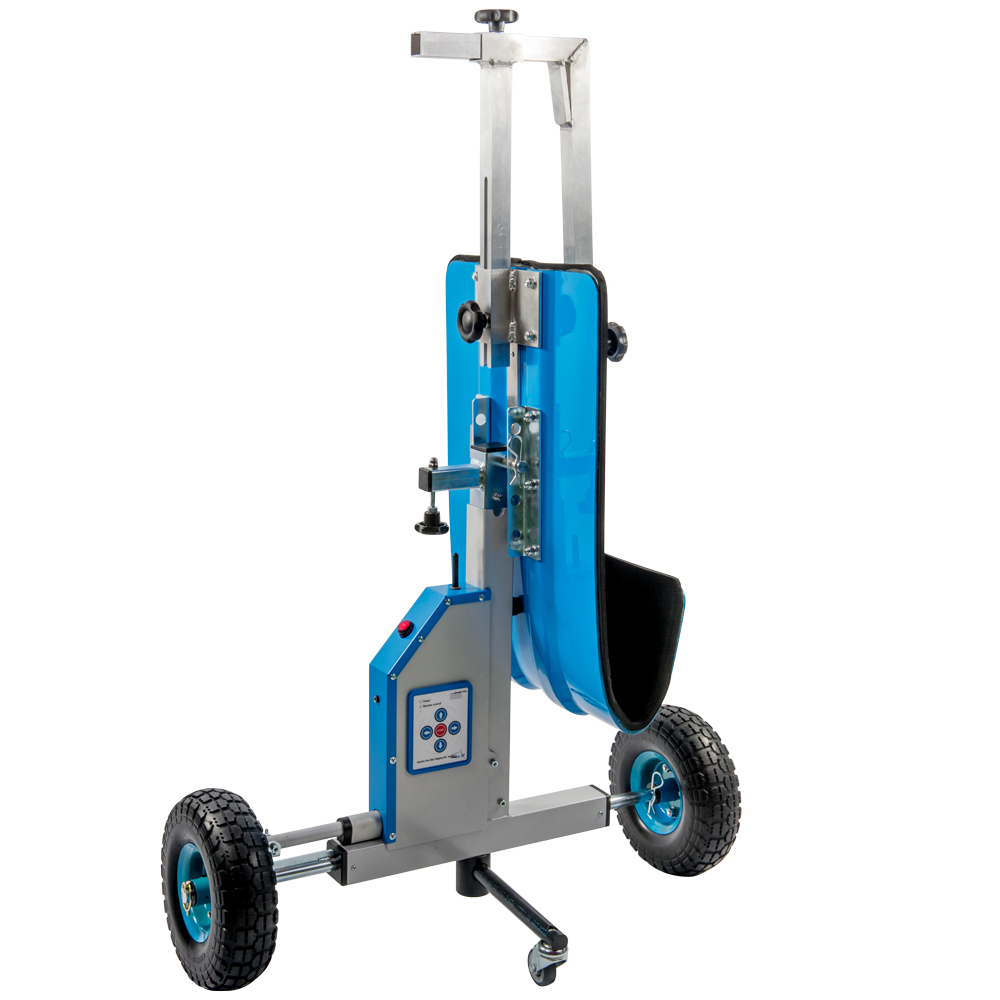

The original Electric One-Man Rigging System, developed and built by SoaringXX.
At SoaringXX, nothing can stop us in our quest for enhanced flying experience. With more than ten years and 1500 flying hours behind us in gliding, we are familiar with the needs and wants of a pilot. This mindset helped us create a compact and lightweight rigging aid that is easy to use.
The first remote controlled electric rigging aid comes with a control panel and voltmeter on the T-frame. The two linear actuators can lift up to 1500 kN each. One 12 V, 2.1 Ah PB removable battery is included in the package providing enough power for approximately 1 hour of intense use. ( The net usage of the rigging system per assembly is approximately 5 minutes )
Each system is made with great care by professionals. Our expertise allows us to satisfy any need of customisation.
Currently two standard setups are available:
Heavy duty for double seaters and open class gliders
Remote controlled electric system

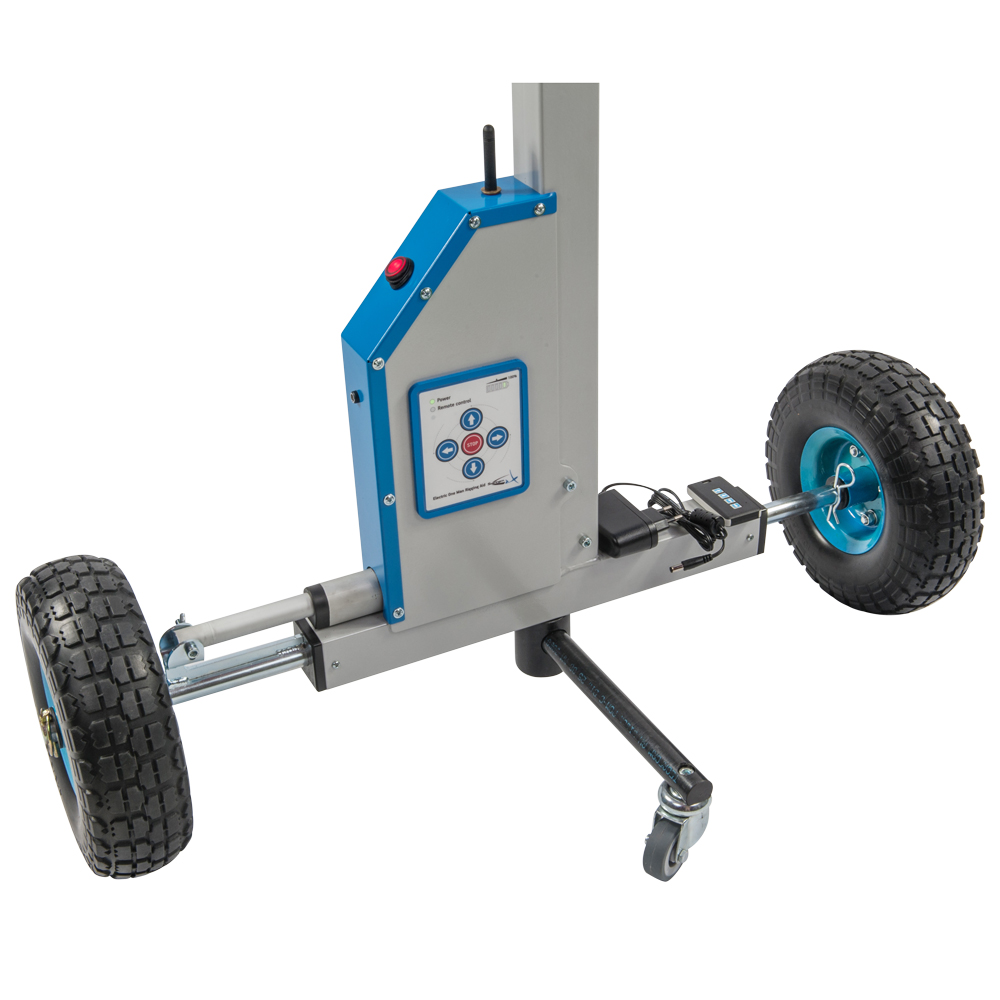

Control panel and voltmeter on the T-frame
2 linear actuators, lifting up to 1500 kN
A 12 V, 2.1 Ah removable battery included
Frame made of the combination of aluminium and steel

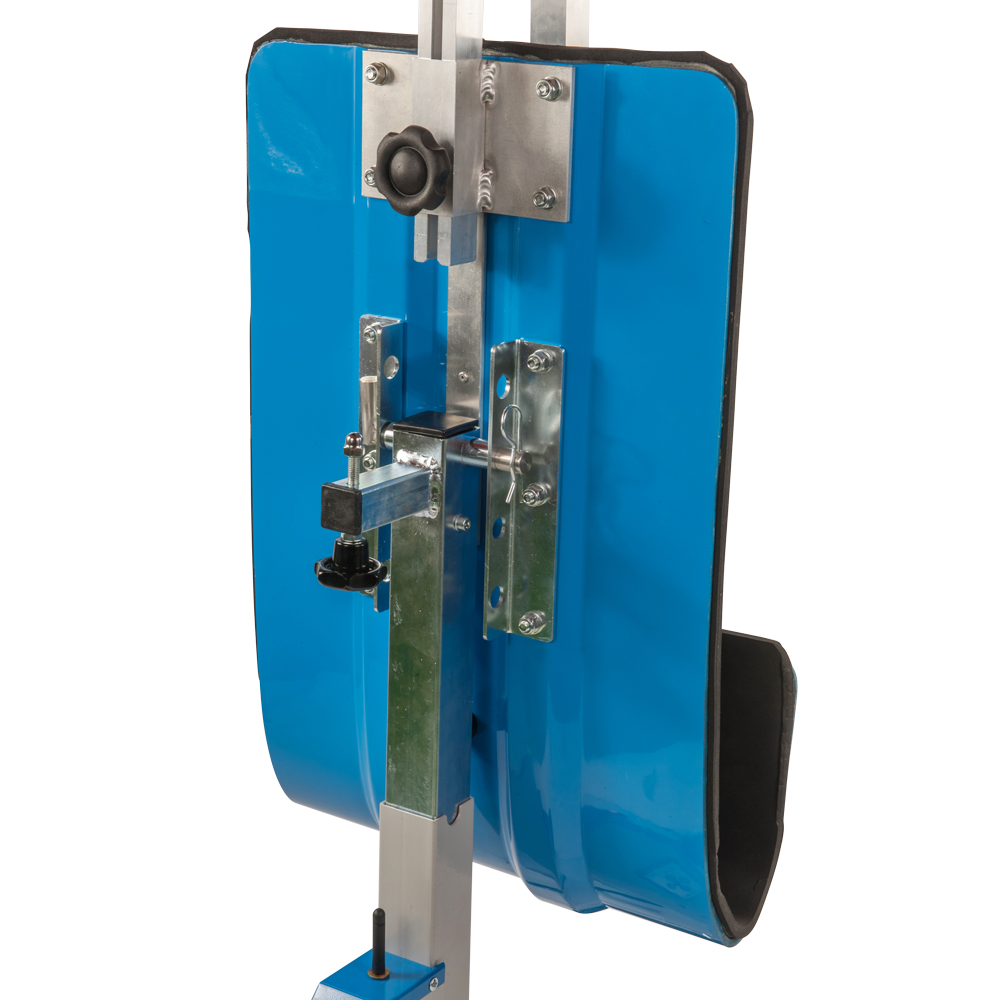

Wing profile made of Fiberglass
Lightweight and compact yet sturdy design
Easy assembly and usage
Height: 80-100 cm
Width: 80 cm
Length: 40 cm
