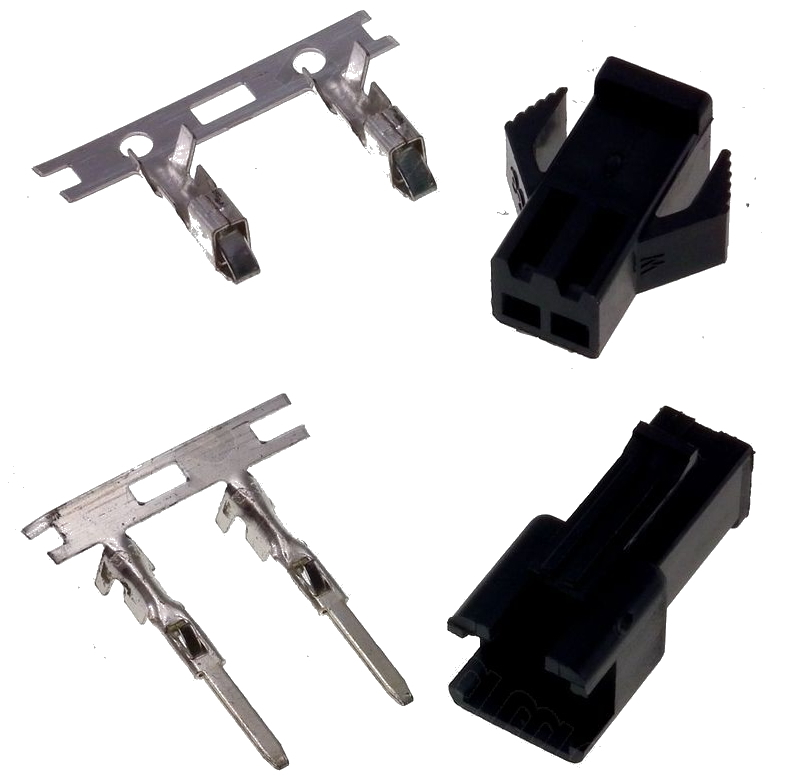

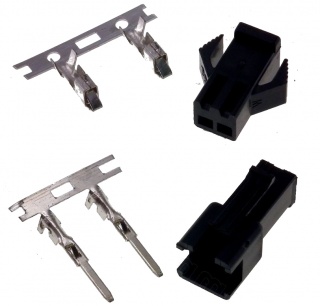

Includes both the male side and female side with their respective pins.
When wiring up panels, it is often helpful to use quick disconnect plugs on minor 2-way electrical lines such as digital temperature probe lines, SC (cruise/climb) wiring, VP wiring, PTT wiring and audio connections (mic and speaker) to enable easy removal of instruments panels, comings and side panels within the cockpit for maintenance and inspection.
These are best used for signal wiring such as those uses suggested above rather than for power supply wiring that may carry signficant current.
We usually finish them by covering the rear section of the plugs and the start of the wires in heatshrink once wired up.
2.5mm pitch, wire-to-wire connectors that perform reliably in high-density, small current applications
High contact pressure Highly reliable housing construction Mountable on a variety of panels Arm lock mechanism
Specifications:
Current rating: 3A AC, DC max Voltage rating: 250V AC, DC max Temperature range: -25˚C to +85˚C (including temperature rise in applying electrical current) Contact resistance: Initial value/ 10m Ω max. After environmental testing/ 20m Ω max Insulation resistance: 500M Ω min Withstanding voltage: 1,500V AC/minute Applicable wire: AWG #28 to #22 0.08 to 0.33mm2 Applicable panel thickness: 0.5 to 2.0mm Compliant with RoHS.
