CARBONaero T style - double probe

CARBONaero T style - double probe
  Zoom


Our Price:  £175.00(Inc. 20% VAT)(£145.83 Exc. VAT)
+

Brand:  CarbonAero

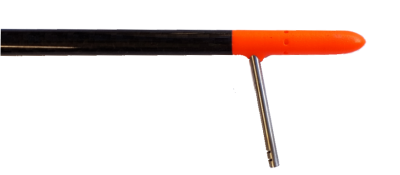

A brand new design from CARBONaero - this double probe is designed as a direct replacement for probes fitting the common SN2 socket. This probe senses static and TE.



Manufactured from carbon fibre tube, this probe is lighter and stiffer than the competition. The painted nylon and 316 stainless sensing head further reduces weight and makes for a snag free probe that is less susceptible to damage.

It is nominally 0.75m in length, so taking it's TE pressure measurement further away from the influences of the fin and tailplane of the glider and further away from the wake from the wings than most standard sized TE probes.

Also built with a fluorescent tip to help prevent you or onlookers from walking into your probe!






Knowing accurately what the air is doing around your glider is one of the keys to successful soaring and cross country. This information can only be provided truly accurately by a properly compensated total energy probe, and a leak free setup. For those that are looking for a traditional Total Energy probe with a arm style sensing head, CARBONaero has develloped its own proprietry sensing head pattern and dimensions, delivering a stable and perfectly compensated source of total energy. This style of TE probe has excellent performance in all conditions, and is the more suitable probe for very wet cloud climbing.





Specification:

  • Length nominal 0.75m, 1.00m available in some probes
  • Probe sensing head diameter 4.00mm tube, ~100mm height
  • Material Woven Carbon tube, 316 stainless sensing arms, nylon/carbon/316 plug
  • Weight 40g - 100g depending on variant
  • Smooth TE pressure delivery at yaw angles of up to 15 degrees
  • 1 year warranty



Please note - Shipping options will be ‘UK MyHermes’ for long objects for £4.50 or UPS. The MyHermes method is only available if the TE Probe is purchased on its own & will not be available if you have additional items in your basket.
