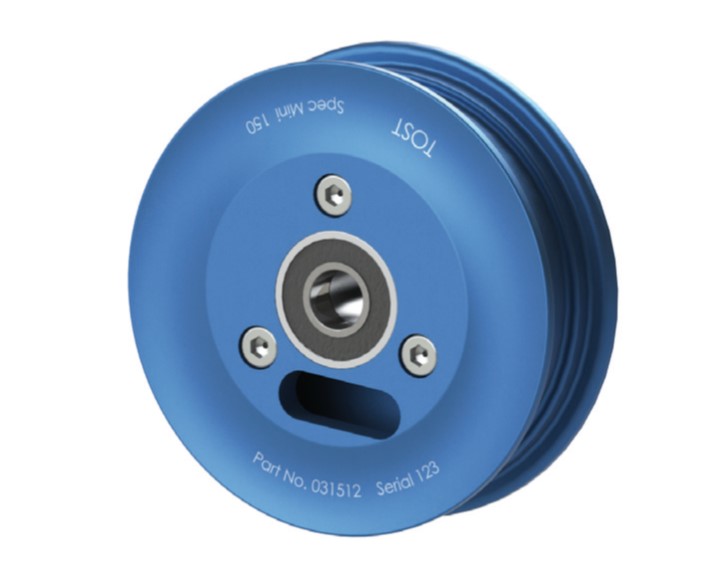

The smallest available wheel with pneumatic tyre with the advantage of good suspension.
Easy tyre mounting despite very narrow dimensions!

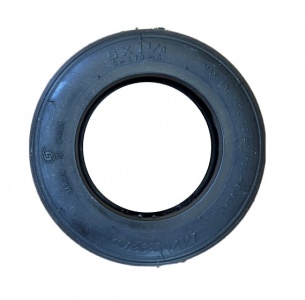

Tyre diameter 150 mm respectively 180 mm, installation width only 30 mm / 35 mm.
For retrofit of tail wheels, also for steerable tail wheels.
Anodised in blue (standard) or in silver (on request).
|P/N ||Description ||Install width ||Bearing diameter ||Tyre size ||Mass w/o tyre (g) ||Type of hub |
|031512 ||LR Mini 150 ||30mm ||12mm ||150x30 ||300 || |
|031513 ||LR Mini 150 ||30mm ||12mm ||150x30 ||300 ||special valve hole |
|031515 ||LR Mini 150 ||30mm ||0.5inch ||150x30 ||300 ||axle in inches |
|031582 ||LR Mini 150F ||30mm ||12mm ||150X30 ||300 ||Foam-filled tyre |
|031592 ||LR Mini 150 ||30mm ||12mm ||150x30 ||300 ||Valve hole cover |
|031812 ||LR Mini 180 ||35mm ||12mm ||180x35 ||330 || |
