LXNAV S80

Zoom

Our Price: £1,475.00(Inc. 20% VAT)(£1,229.17 Exc. VAT)

–+

AHRS option:

+ £739.00

Brand: LXNAV

You may also like

Bluetooth Module 3.0 for S7, S8 and S80 Varios

+ £91.90

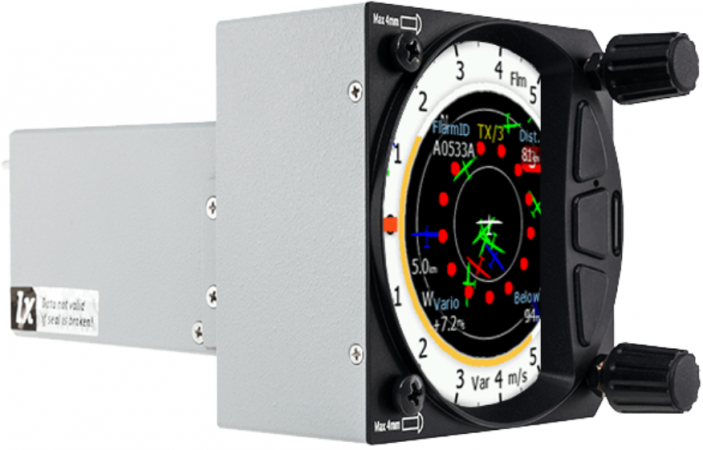

The LXNAV S80 is fast becoming a firm favourite withing the gliding community. With airspace, waypoints, flarm display and task planning all built in as standard, and a built in battery should your power fail, the S80 really has almost everything you could need in one box. The AHRS option can be unlocked at any time by just purchasing the license.

The LXNAV range of standalone varios provide the ideal system of connecting your Flarm and your Oudie and having all three devices sharing information with each other. Use the GPS port to connect to your Flarm device and connect your Oudie or mobile phone using the PDA port - or add the Bluetooth module for wireless connectivity.

The S80 fits into a standard 80mm instrument hole.

Please note - you must only use a single source of power for this setup. Connect only the S80 to your power source using the harness provided: your Flarm and Oudie will be both be powered by the S80. Please call us first if you have any doubts about how to wire in your S80.

More Information
Specifications
Customer Reviews

Main Features

ARM Cortex-M4 processor running on 160MHz
3.5'' QVGA sunlight readable screen with 1200nits
QVGA (320*240pixels) sunlight readable display
Digital temperature compensated pressure sensors for altitude and airspeed
inertial platform 3 axis digital +-8g accelerometer, 3 gyroscopes (for inertial vario, AHRS and wind calculation)
Dual pressure Technology
Smooth audio output
Audio equalizer
integrated synthesized speech output
audible thermal assistant
External SD card for configuration, flarmnet and firmware update
2 rotary switches (knobs) with push button function and 3 push buttons are used for input
ALS (ambient light sensor)
6 digital inputs - SC, VP + 4 custom defined
80 mm air norm size

User Interface

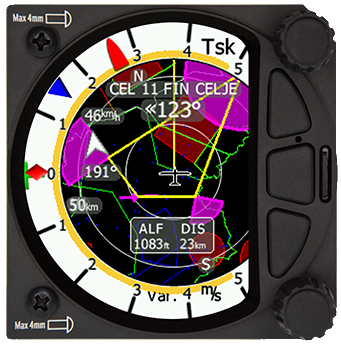

Moving map with airspace track up option
Airspace display
Waypoints and Task display
AHRS display (optional)
Thermal assistant
Display of 4 configurable (navboxes) values
Display of 3 configurable (navboxes) values on map screen
Waypoint navigation
TASK navigation
Flarm radar
Flarm warnings
Flarm Net

Color display

16 bit color display
3.5” (9cm) screen
320 by 240 pixel resolution
1200 cd brightness

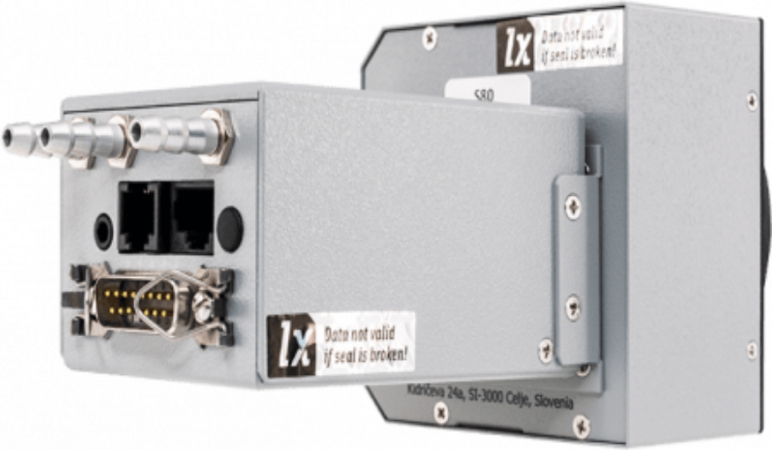

Input and output

GPS port input/output on RS232 level (standard IGC 6 pin connector RJ11)
PDA port input/output on RS232 or TTL level for PDA/PNA devices with 5V power supply (8 pin RJ 45, 5V output max 2A)
Audio output
1Mbit CAN bus for connection for S8D repeater, Compass module or remote stick
Speed command and Vario priority input and 4 additional user defined inputs
Two Rotary knobs with push function
3 push buttons

Optional accessories

AHRS activation with a CODE - no need of for any hardware upgrade
Remote stick
Compass module (not supported yet - under development)
S80D repeater unit
Oudie
Bluetooth module
Nano/Nano3
FLAP sensor

Power supply

Power input 10-16V DC
Consumption of LXNAV S80 at 12 V:
- 140 mA - minimum brightness without audio
- 190 mA - maximum brightness without audio
Consumption of LXNAV S80D at 12 V:
- 90 mA - minimum brightness without audio
- 140 mA - maximum brightness without audio

Size and weight

80 mm (3.15") standard aircraft cut-out for the LXNAV S80 indicator unit
81x81x45mm
Sensor box: 65x45x85mm (not including connector)
All together: 81x81x132mm (not including connector)
Weight: 460g (290g for S80D)

sS80_02 sS80_01

sS80_02 sS80_00

sS80_00 sS80_00
