Fuselage Mount - Flarm Antenna SMA Connector

Fuselage Mount - Flarm Antenna SMA Connector
  Zoom
 Connector Type: StandardConnector Type: Long


Our Price:  £15.00(Inc. 20% VAT)(£12.50 Exc. VAT)
+
Connector Type:

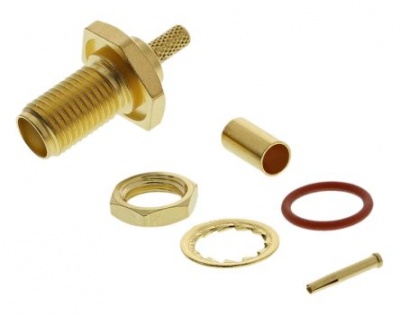

Fuselage mount SMA connector - To be used for mounting external FLARM antennas such as the Dolba BD9 through the fuselage wall or an undercarriage door.

The standard connector is a panel mount connector, designed to be crimped straight onto the Flarm antenna RG174 cable and then mounted through the fuselage/UC door.

The long connector is an extension, designed to go through particularly thick fuselage walls/UC doors. It will need a SMA connector to be crimped onto the Flarm antenna RG174 cable, (90deg option best for UC doors), then the Flarm antenna such as the Dolba BD9 can be mounted on the longer thread, external to the glider.
