External FLARM Antenna and Installation Kit

External FLARM Antenna and Installation Kit
  Zoom


Our Price:  £125.00(Inc. 20% VAT)(£104.17 Exc. VAT)
+

Brand:  Dolba & Dolba

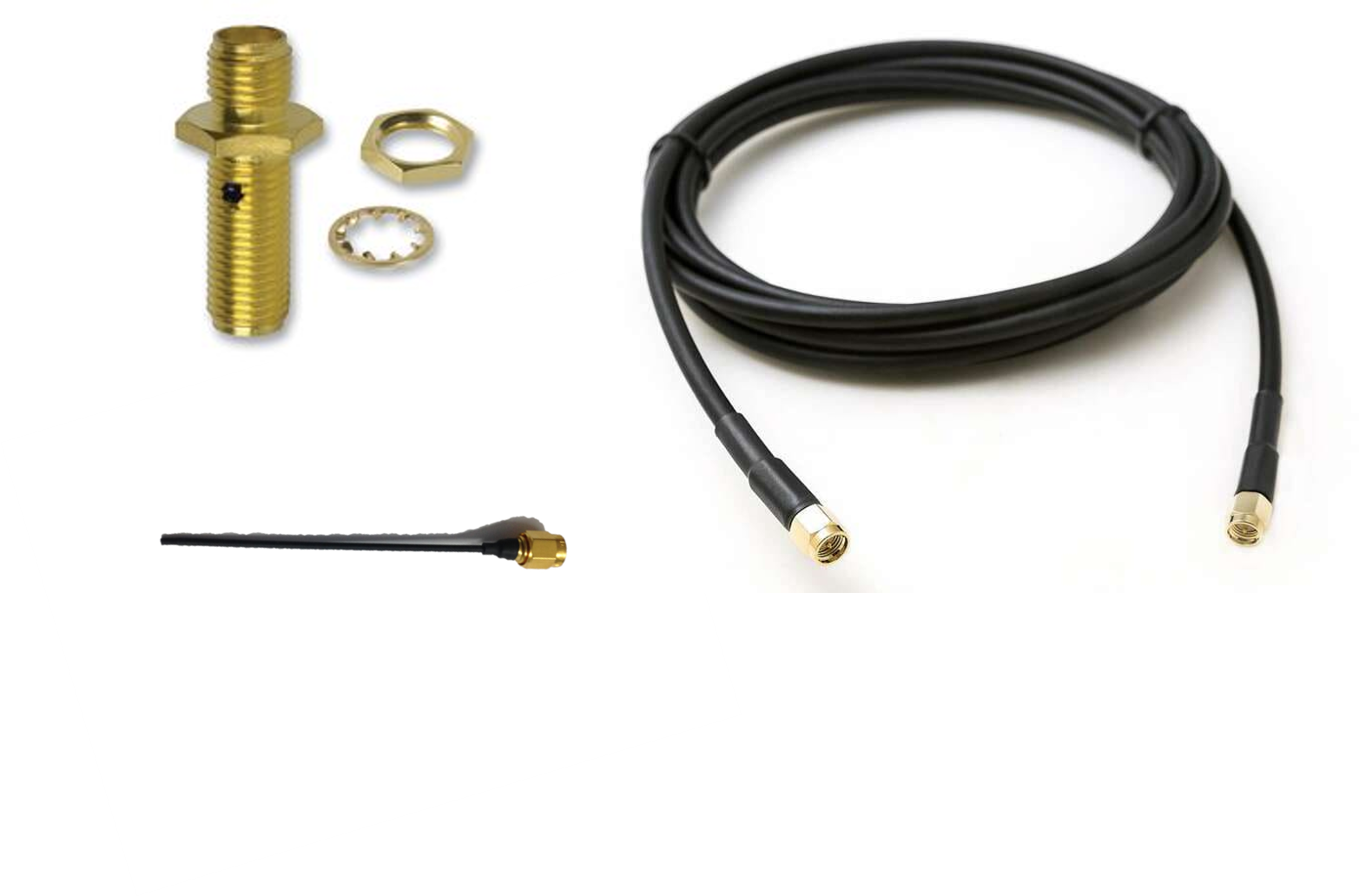

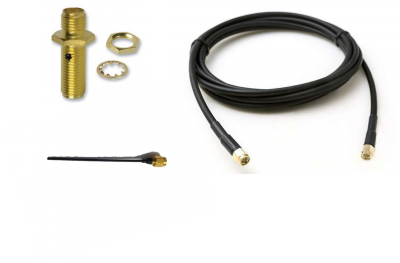

This kit includes a 3m H155 cable with male SMA ends along with a long bulkhead connector and the excellent BD9 antenna.

The kit is aimed at inspectors and pilots who want to fit the antenna themselves typically behind the wheel box in Shempp-Hirth and Schleicher gliders. Please note, you should consult the manufacturers guidelines for fitting antennas through the tail boom structure.

The cable is high quality H155 cable with fitted SMA connectors. These connectors connect to an existing FLARM antenna socket on your FLARM device and the other end connects to the bulkhead connector. The BD9 antenna then screws on to the exposed bulkhead connector from outside the aircraft.

This is a particularly low-resistance antenna with a high-quality plug made by antenna experts Dolba & Dolba in Germany.

This antenna is well suited to mounting below the fuselage.

Mounting this antenna far away from disturbing influences allows a good all-round FLARM signal reception.

In combination with a directional antenna (BD 8 or BD 14 from Dolba & Dolba or another more commonly found type of Flarm antenna) and a PowerFLARM/Powermouse units with both antennas activated (RFB) you can achieve optimal Flarm signal coverage.

Omnidirectional lambda / 4 monopole (counterweight required).

Frequency : 868 MHz
Dimensions : diameter 0.8 mm; Length 90 mm
Weight : 3.5 grams
Connection : SMA Connector 50 Ohm

Warning - all FLARM equipment is susceptible to static shock so please make sure before touching any antenna components you have grounded yourself. Static shock can seriously damage your FLARM device!
