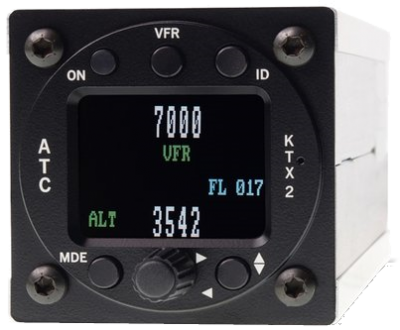

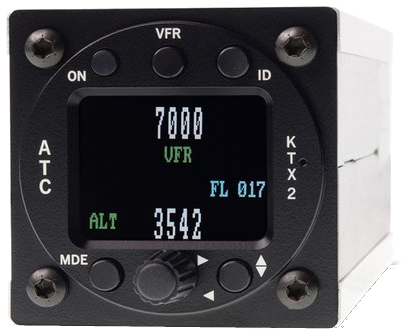

KTX2 Transponder

KTX2 Transponder
  Zoom


Our Price:  £1,794.00(Inc. 20% VAT)(£1,495.00 Exc. VAT)
+

Brand:  TQ

Transponder Blade AntennaTransponder Blade Antenna
Transonder Rod Antenna with BNC connectorTransonder Rod Antenna with BNC connector
2m Aircell 7 cable and single BNC connector fitted2m Aircell 7 cable and single BNC connector fitted

The newly developed Mode-S Transponder KTX2 incorporates latest technology The result is a highly efficient airborne equipment, offering lowest possible power consumption, smallest dimensions and lowest weight. As a Class 1 Transponder with an operational range up to 35.000ft and 250kt the KTX2 is ideal not only for microlight aircraft and gliders, but also for a major part of aircraft of general aviation up to 12500lbs MTOW (VFR and IFR).


PLAY SAFE with the innovative model S KTX2 transponder from TQ-Avionics
The fully re-engineered KTX2 is a super light weight, compact model S transponder with low current consumption and a premium TFT-colour display. Regardless of whether it is used in sport, microlight aircraft, gliders or balloons - the KTX2 offers maximum possible safety due to provision of precise position and ID-data for the air traffic control and other air traffic participants. As a result, the KTX2 is a reliable device to prevent collisions.
Advantages at a glance
Sensational low weight of only 360 grams (0.79lb) - ideal not only for gliders and microlight aircraft
Smallest dimensions - for an easy and flexible installation
Minimal current consumption - ideal for battery-operation in gliders and balloons
Large, high-contrast, durable TFT colour display for best readability even under direct sunlight
Intuitive handling - developed from pilots for pilots
Excellent cost-to-performance ratio
Easy, flexible installation

The KTX2 is available in three models. Beside the standard version for installation in a 57mm (2) round slot, there is also a 'mini'-version (which will be certified shortly) in landscape or portrait shaped housing. Due to a housing length of only 144mm (5-2/3) the transponder can easily be installed in cockpits where there is limited space. For mobile use, e.g. on balloons, the KTX2 is available as a portable station - ideally in combination with the Dittel KRT2 radio transceiver in the same design.
Standard: 144 x 63,5 x 62 mm
Mini Landscape: 144 x 63 x 46 mm
Mini Portrait: 144 x 46 x 63 mm

Future proof features

The housing of the KTX2 is full of the finest technology:
Built-in high-precision, temperature compensated altitude encoder to connect to the static port
The hardware of the KTX2 is designed to deliver precise position data (extended squitter) for ADS-B.
Via the RS232 interface, an appropriate GPS receiver can be connected (supplemental ETSO-C166b certification in preparation)
Possibility of firmware upgrades

Technical Data

Type Mode-S Transponder Class 1 Level 2els
Approvals ETSO-C112d, ETSO-C88a / TSO-C112d, TSO-C88a
RTCA DO-178C / ED-12C Level D
RTCA DO-160F / ED-14F
Compliance EUROCAE ED-26, EUROCAE ED-14F, EUROCAE ED-12C
EUROCAE ED-73E, RTCA DO-181E
Operating voltage 9V - 33V DC
Power consumption 0,2 - 1.0A (dependent from number of requests)
Transmission power ≥ 24dBW (250W)
Transmission frequency 1090 ± 1MHz
Operating temperature -20°C, +55°C
Shock 6g operation, 20g damage tolerance
Weight 360g
Max. operational altitude 35.000 ft
Max. operational speed 250 kt / 463 km/h
Dimensions 144 x 62 x 62mm (Standard) / 144 x 63 x 46mm (Mini)
