LXNAV PowerMouse

LXNAV PowerMouse
  Zoom
LXNAV PowerMouseLXNAV PowerMouseLXNAV PowerMouseLXNAV PowerMouse


Our Price:  £800.00(Inc. 20% VAT)(£666.67 Exc. VAT)
+
Flarm Display Type:
Second Antenna Option (with License):
Second Antenna Option (No License):
Integrated ADSB Module:

Brand:  LXNAV

Panel Mount USB Extension CablePanel Mount USB Extension Cable

There is a new member in the PowerFlarm family!!

Welcome the versatile and customisable PowerMouse.

What's in the standard box:

  • PowerFlarm unit
  • LXNAV GPS antenna
  • Classic dipole antenna
  • Bluetooth antenna
  • Power cable (RJ45 to two loose ends)
  • USB stick with instructions and manual

* Units purchased with the 'second antenna option' will have two classic dipoles included in the box.
* Units purchased with the 'ADSB module' will also have an ADSB antenna in the box.

Read on in More Information and Specifications for further details.

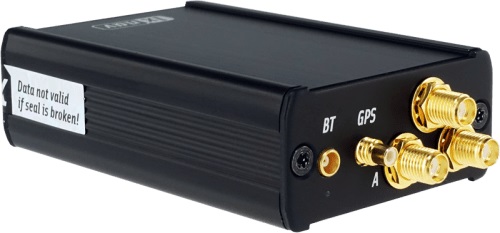

The PowerMouse is a more powerful standalone box hidden behind/below the cockpit dashboard.

It has an integrated USB port which is easier to use than the SD card slot. It has a built in Bluetooth module which works with Android and iOS, GPS module and the option of an IGC flight recorder with internal pressure sensor. The Power Mouse is based on a PowerFLARM technology. Second Flarm antenna and integrated ADSB option also available.

Integrated ADS-B adds to the functionality by adding a transponder and ADS-B receiver. In addition to Flarm equipped aircraft, the unit will also provide proximity warnings for transponder equipped aircraft. Aircraft without ADS-B out capability will be shown with approximate range and altitude difference (Mode-C). Aircraft with ADS-B out will lead to the same warnings as for Flarm equipped aircraft.

Main features

Bluetooth module BT3.0 an BT4.0LE (for Android and iOS)

External USB connector for an easy data exchange behind the cockpit panel

Built in flarm splitter – easy to connect to second display or nav device

Expandable to all standard Flarm displays (3V and 12V)

PowerFlarm platform

Dimensions: 55mm x 90mm x 25mm

Weight: 160g

Power Supply: Input 8-36V DC

Consumption: 1.02W (85mA @12V) excl. power for USB stick

Optional extras:

  • IGC flight recorder (approved all the way up to Diamond)
  • ENL – engine noise level sensor
  • RFB – second flarm receiver (dual antenna diversity)
  • ADSB functionality
