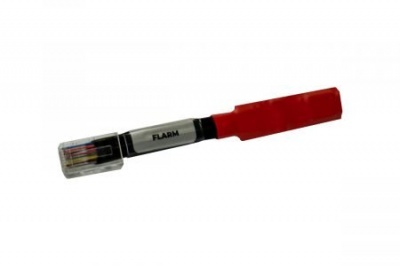

Naviter Bluetooth Dongle - Flarm

Naviter Bluetooth Dongle - Flarm
  Zoom


Our Price:  £79.50(Inc. 20% VAT)(£66.25 Exc. VAT)
+

Flarm – IGC standard port

Compatible with all Flarm and Power Flarm devices with a free RJ45 port with standard IGC-pinout in the back.

If no free RJ45 port is available on your device, you will need a separate Flarm Splitter to connect Naviter Bluetooth Dongle to your Flarm.


Features

  • Plug-and-play, zero configuration needed.
  • Connects to two devices simultaneously.
    • One device to Bluetooth Low Energy interface (iPhone, Android)
    • One device to Bluetooth 2.0 interface (Oudie)
  • Auto-detects serial data baud rate.
  • Starts transmitting as soon as valid data is detected.
  • Transmits data both ways – to and from connected device
  • Change broadcasted name with SeeYou Navigator to be able to distinguish it from other Naviter Bluetooth Dongles around.

Pairing with SeeYou Navigator

Pairing Naviter Bluetooth Dongle with SeeYou Navigator for Android and iPhone is easy.

Before pairing, make sure that the Naviter Bluetooth Dongle is connected to a supported device and that the device is transmitting on the port where the Bluetooth Dongle is connected.

  1. Run SeeYou Navigator
  2. Go to Menu > Devices
  3. Wait until see “Naviter BLE” device in the list of discovered devices
  4. Tap on “Naviter BLE
  5. Wait until it displays a “connected” message

Done. The Naviter Dongle is setup and ready to use.

Pairing with Oudie

Pairing Naviter Bluetooth Dongle with Oudie is easy.

Before pairing, make sure that the Naviter Bluetooth Dongle is connected to a supported device and that the device is transmitting on the port where the Bluetooth Dongle is connected.

  1. Run Oudie
  2. Go to Menu > Settings > Input > Bluetooth
  3. Press “Lookup” and wait until it displays a device named “Naviter BT20
  4. Tap on “Naviter BT20” to highlight it
  5. Click Pair

Done. The Naviter Dongle is setup and ready to use.

Renaming the Dongle

In an environment where several dongles are visible to SeeYou Navigator, such as in the club and at a competition, giving your Dongle a unique name is a good idea. Renaming the Naviter Bluetooth Dongle is easy with SeeYou Navigator.

This procedure assumes you have already paired the Naviter Bluetooth Dongle with SeeYou Navigator. If you did not, read above for instructions.

  1. Run SeeYou Navigator.
  2. Go to Menu > Devices.
  3. Make sure “Naviter BLE” is paired and connected.
  4. Tap on “Naviter BLE” device to open the menu.
  5. Choose “Rename dongle”
  6. Enter any name that will uniquely identify the dongle, then click Save.

Choose a short and easy name to recognize for the Naviter Bluetooth Dongle. Competition sign, glider registration or device type is a good choice in most cases.

If you choose “D-7111” as the new name of your Dongle, it will broadcast its name as

  • Naviter D-7111 BLE” in SeeYou Navigator
  • Naviter D-7111 BT20” on Oudie

You will enjoy flying with the Naviter Bluetooth Dongle.

Weight 0.009 kg
Dimensions 13 × 2 × 2 cm
