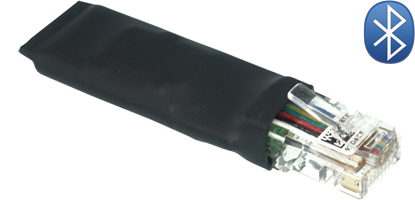

Bluetooth Module for S7, S8 and S80 Varios

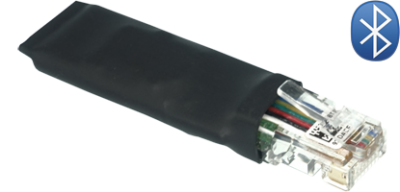

Bluetooth Module for S7, S8 and S80 Varios£78.95


Remote Stick for S8x and S10x Varios

Remote Stick for S8x and S10x Varios£336.00

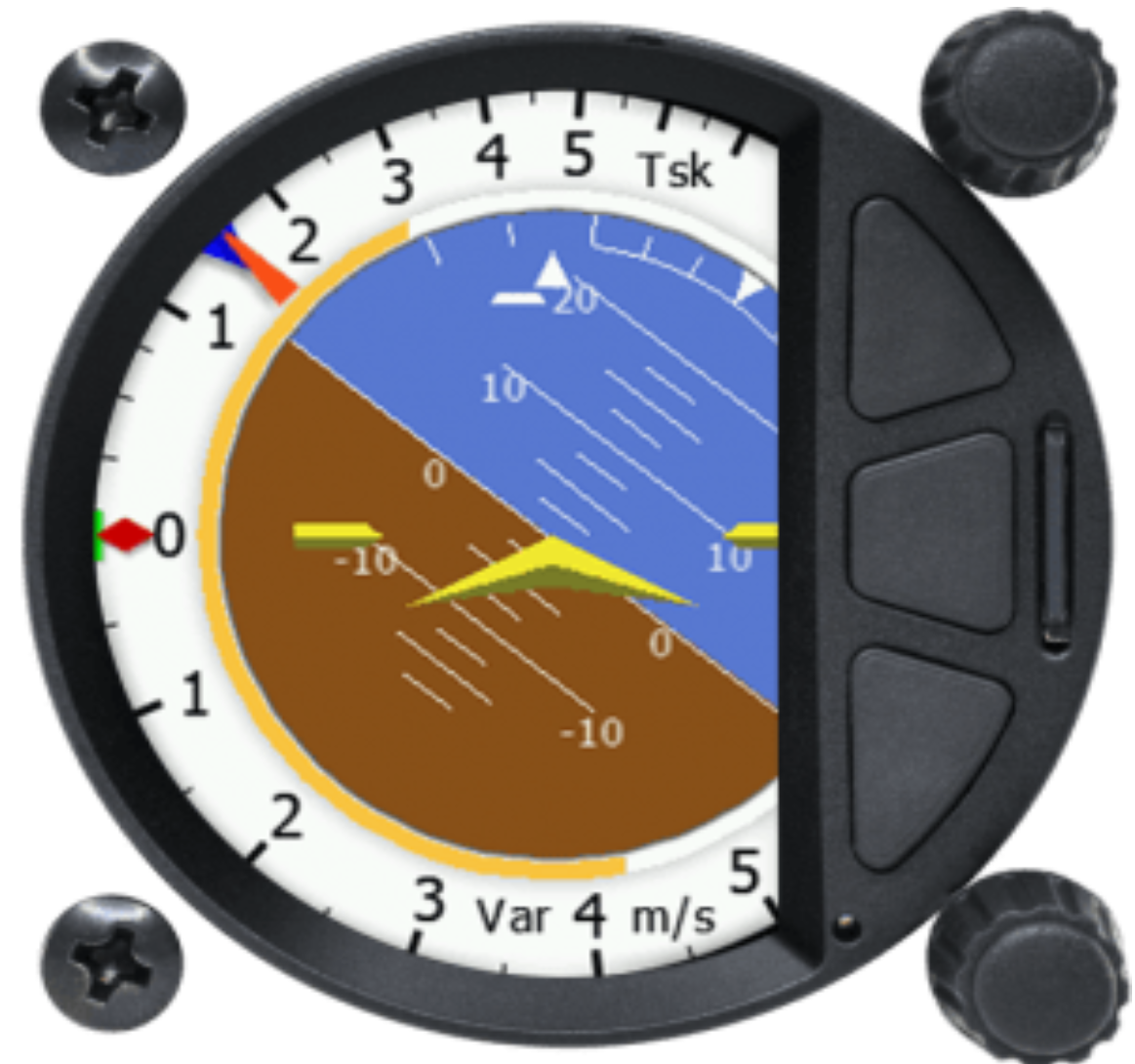

LXNAV S8 CLUB

LXNAV S8 CLUB
  Zoom


Our Price:  £879.00(Inc. 20% VAT)(£732.50 Exc. VAT)
+
LX AHRS - Activated:
Task Navigation Option:
Airspace Display Option:
Pilot Profile Customisation Option:
Digital Inputs Option:

Brand:  LXNAV

The popular LXNAV S80 and S8 standalone varios now have a new variant available. If you need a standalone variometer, with all the same connectivity, upgradeability and accuracy as the S80/S8, but without the need for airspace, tasks, pilot profiles and remote inputs (airbake, undercarriage warnings etc), then the S80/S8 Club is the choice for you. Built with the exact same hardware as for the S80/S8, these units can be upgraded to include any of the above features as a software upgrade - meaning it can be upgraded to full S80/S8 functionality at any point in the future. They can also be upgraded to include AHRS, bluetooth and compass (under development) functionality just like the S80/S8.



  • Airspace Indication
  • AHRS Indication
  • TSK Navigation
  • Digital Inputs
  • Pilot Profiles

  • ARM Cortex-M4 processor running on 160MHz
  • 2.5'' QVGA sunlight readable screen with 1200nits
  • QVGA (320*240pixels) sunlight readable display
  • Digital temperature compensated pressure sensors for altitude and airspeed
  • inertial platform 3 axis digital +-8g accelerometer, 3 gyroscopes (for inertial vario, AHRS and wind calculation - AHRS can be activated with code)
  • Dual pressure Technology
  • Smooth audio output
  • Audio equalizer
  • integrated synthesized speech output
  • audible thermal assistant
  • External SD card for configuration, flarmnet and firmware update
  • 2 rotary switches (knobs) with push button function and 3 push buttons are used for input
  • ALS (ambient light sensor)
  • 6 digital inputs - SC, VP + 4 custom defined (optional)
  • 57 mm air norm
  • 16 bit color display
  • 2.5”(~ 6.5cm) screen
  • 320 by 240 pixel resolution



  • GPS port input/output on RS232 level (standard IGC 6 pin connector RJ11)
  • PDA port input/output on RS232 or TTL level for PDA/PNA devices with 5V power supply (8 pin RJ 45, 5V output max 2A)
  • audio output
  • 1Mbit CAN bus for connection for S8D repeater, compass or remote stick
  • Speed command and Vario priority input + 4 additional inputs
  • Two Rotary knobs with push function
  • 3 push buttons



  • Moving map with airspace track up option
  • Airspace display (optional)
  • AHRS display (optional)
  • Thermal assistant
  • Display of 4 configurable values
  • Display of 3 configurable values on map screen
  • Waypoint navigation
  • TASK navigation (optional)
  • Flarm Radar
  • Flarm Warnings
  • Flarm Net
  • Digital Inputs (optional)
  • Pilot profiles (optional)




  • AHRS activation with a CODE - no need for any hardware upgrade
  • Remote stick
  • Compass module (not supported yet - under development)
  • S8D repeater unit
  • Oudie
  • Bluetooth
  • Nano/Nano3
  • FLAP sensor



  • Power input 10-16 V DC
  • Consumption of LXNAV S8 at 12 V:
    • 120 mA - minimum brightness without audio.
    • 180 mA - maximum brightness without audio.
  • Consumption of LXNAV S8D at 12 V:
    • 90mA - maximum brightness



  • Standard 57mm (21") hole
  • 61mm x 61mm x 95mm (exclusive connector)
  • Weight: ~330g
