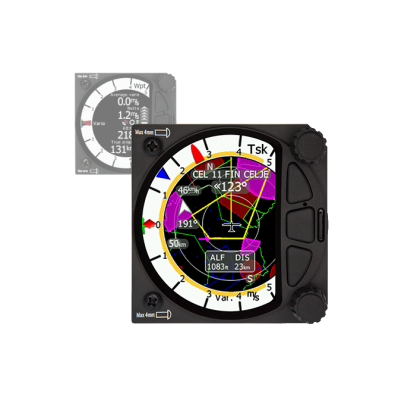

S8D/S10D Rear Seat Repeater

S8D/S10D Rear Seat Repeater
  Zoom


Our Price:  £645.00(Inc. 20% VAT)(£537.50 Exc. VAT)
+
S8D or S10D:

Brand:  LXNAV

Both the S80 and S8 have rear seat repeaters (S80D and S8D) and are interchangeable. i.e. you can mix and match S80/S8 with S80D/S8D. The second unit is more than just a repeater display; it has all of the same functionality as the main unit. Front and back units are connected together with a CAN Bus cable carrying both data and power. One of the great features of the S80 and S8 is connectivity for a PDA or Oudie including power and data from the main unit. You can also drive a second rear seat PDA or Oudie using a CAN2PDA box. This small box connects into the CAN Bus between the front and rear S80 or S8 and provides data and power to the second PDA or Oudie. Parameter changes from PDA to and from the vario are possible such as MacCready, QNH etc.



The only difference between the S100D and S80D is both the S100D and S10D include the CAN2PDA box built in.


    • ARM Cortex-M4 processor running on 160MHz
    • 2.5'' QVGA sunlight readable screen with 1200nits
    • QVGA (320*240pixels) sunlight readable display
    • Digital temperature compensated pressure sensors for altitude and airspeed
    • inertial platform 3 axis digital +-8g accelerometer, 3 gyroscopes (for inertial vario, AHRS and wind calculation - AHRS can be activated with code)
    • Dual pressure Technology
    • Smooth audio output
    • Audio equalizer
    • integrated synthesized speech output
    • audible thermal assistant
    • External SD card for configuration, flarmnet and firmware update
    • 2 rotary switches (knobs) with push button function and 3 push buttons are used for input
    • ALS (ambient light sensor)
    • 6 digital inputs - SC, VP + 4 custom defined
    • 57 mm air norm



  • 16 bit color display
  • 2.5”(~ 6.5cm) screen
  • 320 by 240 pixel resolution



  • GPS port input/output on RS232 level (standard IGC 6 pin connector RJ11)
  • PDA port input/output on RS232 or TTL level for PDA/PNA devices with 5V power supply (8 pin RJ 45, 5V output max 2A)
  • audio output
  • 1Mbit CAN bus for connection for S8D repeater, compass or remote stick
  • Speed command and Vario priority input + 4 additional inputs
  • Two Rotary knobs with push function
  • 3 push buttons



  • Moving map with airspace track up option
  • Airspace display
  • Waypoints and Task display
  • AHRS display (optional)
  • Thermal assistant
  • Display of 4 configurable values
  • Display of 3 configurable values on map screen
  • Waypoint navigation
  • TASK navigation
  • Flarm radar
  • Flarm warnings
  • Flarm Net




  • AHRS activation with a CODE - no need for any hardware upgrade
  • Remote stick
  • Compass module (not supported yet - under development)
  • S8D repeater unit
  • Oudie
  • Bluetooth
  • Nano/Nano3
  • FLAP sensor



  • Power input 10-16 V DC
  • Consumption of LXNAV S8 at 12 V:
    • 120 mA - minimum brightness without audio.
    • 180 mA - maximum brightness without audio.
  • Consumption of LXNAV S8D at 12 V:
    • 90mA - maximum brightness



  • Standard 57mm (21") hole
  • 61mm x 61mm x 95mm (exclusive connector)
  • Weight: ~330g
